Bowing, Buckling Foundation Wall Repair in Philadelphia, Baltimore & Wilmington

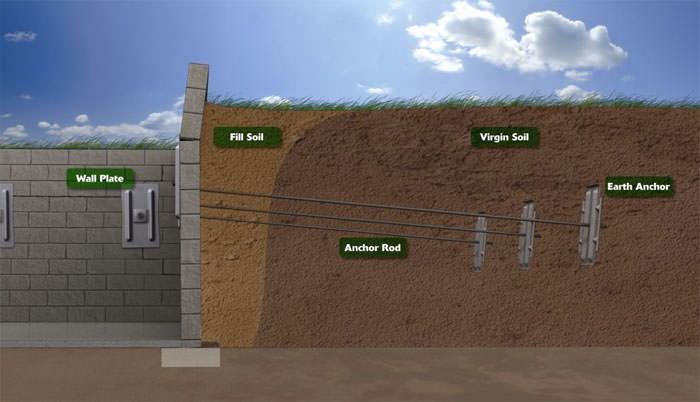

Diagram of a repaired foundation wall

Foundation wall anchors can repair many bowing wall problems. Soil anchors are placed in the ground outside.

Steel rods attached to soil anchors extend through the foundation wall and wall plates. Wall plates distribute clamping pressure. Tightening nuts on the threaded ends of the rods stabilizes the wall for a permanent solution.

The Problem:

Your foundation walls are bowing, buckling or are showing signs of inward movement.

Telltale Signs:

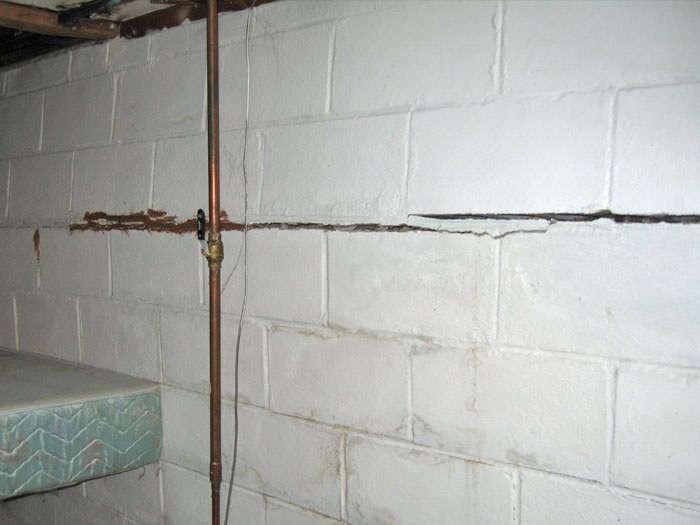

  • Horizontal or stair-step cracking along the foundation walls
  • Diagonal cracking at corners of poured concrete foundation walls
  • Inward bowing or bulging along the walls
  • Walls sliding inward on the bottom
  • Walls leaning in at the top
  • Wet, clay soils around the home coupled with damaged walls

How to Fix It:

Install Supportworks' Geo-Lock™ Wall Anchors along the bowing walls, and use the system's clamping pressure to stabilize and restore the wall.

When space issues prohibit wall anchor installation, we recommend installing the PowerBrace™ Wall System.

We can straighten your bowing, buckling foundation walls! Our solutions are warrantied, and most can be done in a day!

Call us for a free foundation wall repair quote today! We serve Philadelphia, Baltimore, Ellicott City, Wilmington, Upper Darby, Parkville, Lancaster, Dundalk, Owings Mills, Haverford, and many nearby areas in Maryland, Delaware, and Pennsylvania.

Before and After
  • Structural Repair and Waterproofing in Columbia MD
    Before
    Structural Repair and Waterproofing in Columbia MD
    After

    Structural Repair and Waterproofing in Columbia MD

    This basement not only needed a Cleanspace Vapor Barrier, Waterguard and SuperSump Pump to correct the water seepage, but also needed Flexispan to correct some cracks along the walls and our Geo Lock Anchor System to correct the bowing in wall.

  • Bowing Wall in Glen Arm MD
    Before
    Bowing Wall in Glen Arm MD
    After

    Bowing Wall in Glen Arm MD

    Customer reached out to us with concerns of the top poriton of their foundation wall was bowing inward about 2 to 3 inches and feared after time this would only get worse.

    Our solution for this bowing foundation wall was to install 5 Full Wall Channel Anchors which will permanetley stabilize the foundation wall and in time, can straighten the wall back towards its original position.

  • Structural Repair and Waterproofing in Annapolis MD
    Before
    Structural Repair and Waterproofing in Annapolis MD
    After

    Structural Repair and Waterproofing in Annapolis MD

    Customer reached out to us stating there were several questionable cracks in the block foundation that it needed to be assessed.  Once we came out and evaluated the cracks in question, our solution for  this wall was to install 6 Carbon Armor, Carbon Fiber Strips with 6 Armor lock kits. This solution will permanetly stabilize the homes foundation wall.

  • Bowing Wall Repaired in Joppa, MD
    Before
    Bowing Wall Repaired in Joppa, MD
    After

    Bowing Wall Repaired in Joppa, MD

    This basement had a bowing wall, causing cracking and separation of the block. We installed the PowerBrace wall stabilization system to permanently stabilize this home's foundation wall. It comes with a 25-year warranty against further bowing, tipping or shearing. In addition, this system has the ability to be tightened periodically over time, putting reverse pressure on the bowing wall which helps to straighten it.  We also installed ThermalWall vapor barrier to keep moisture out and the warm air in.

  • Structural Repair in Rising Sun MD
    Before
    Structural Repair in Rising Sun MD
    After

    Structural Repair in Rising Sun MD

    In order to put this property on the market, the customer had to take care of the horizontal crack on the foundation wall. The solution for this foundation repair was our Carbon Armor Wall reinforcement system.

    We used 12 Carbon Fiber strips which are made from fiber-reinforced polymer that's 10-times stronger than steel which strengthen and stabilize foundation walls that are bowed or cracked and our ArmorLock system which stops inward wall movement by connecting the CarbonArmor fiber strips to the homes perimeter framing.

Signs of bowing foundation walls

Foundation walls move inward primarily due to expansive soils and hydrostatic pressure on the walls from outside. However, foundation walls may also crack due to many other outside causes, including foundation settlement. Our foundation experts will accurately identify the cause of your home's foundation problems.

Below are images of several foundations that are showing damage from hydrostatic pressure and expansive soils outside the structure.

(Click each photo to enlarge.)

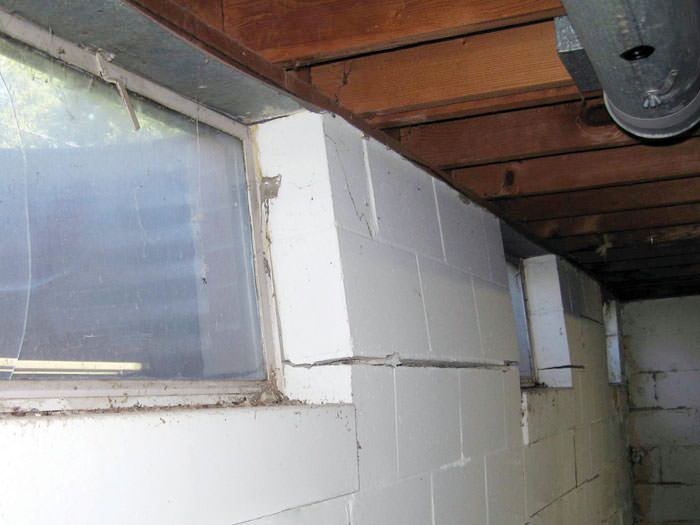

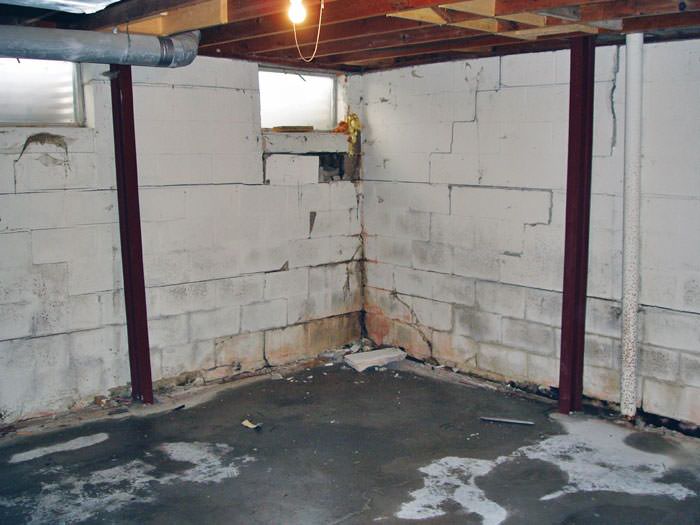

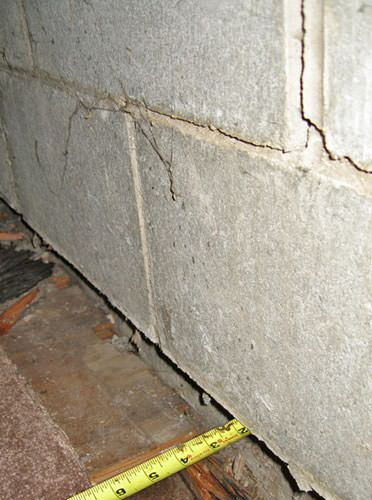

A cracked foundation wall near a window Foundation wall separating from the floor A buckling foundation wall Rusted, corroded i-beams found with a failing foundation

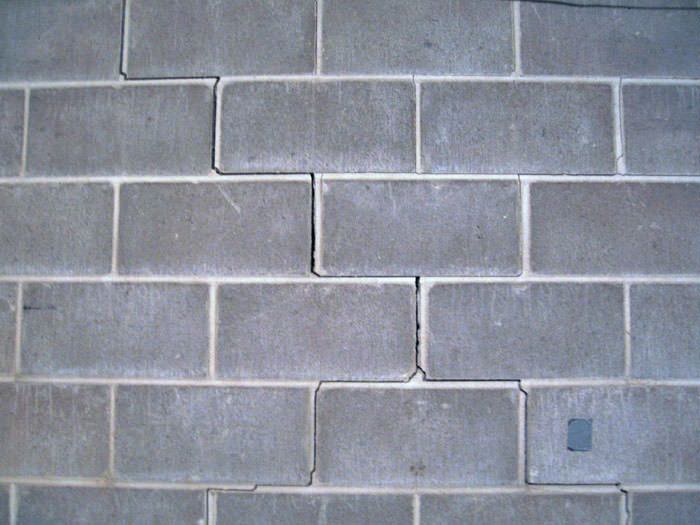

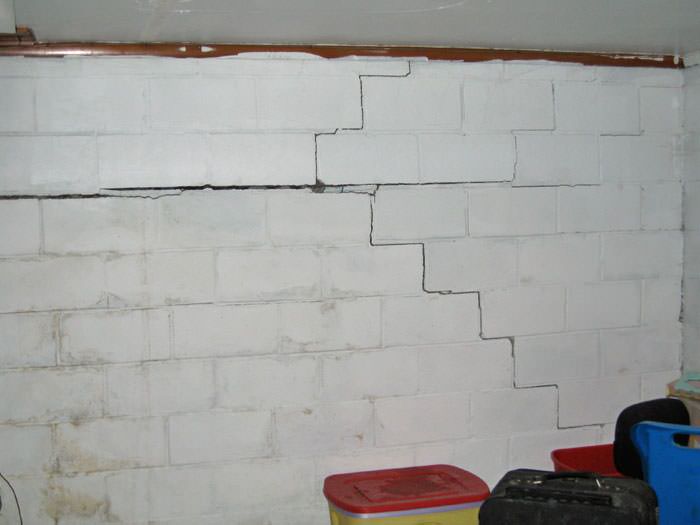

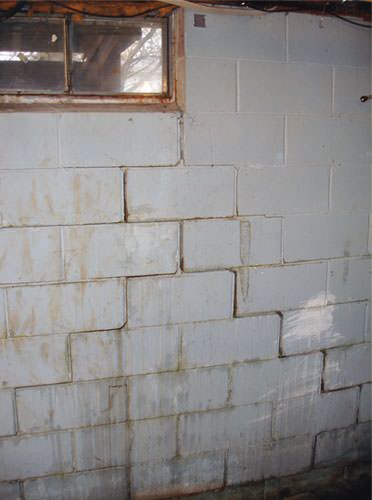

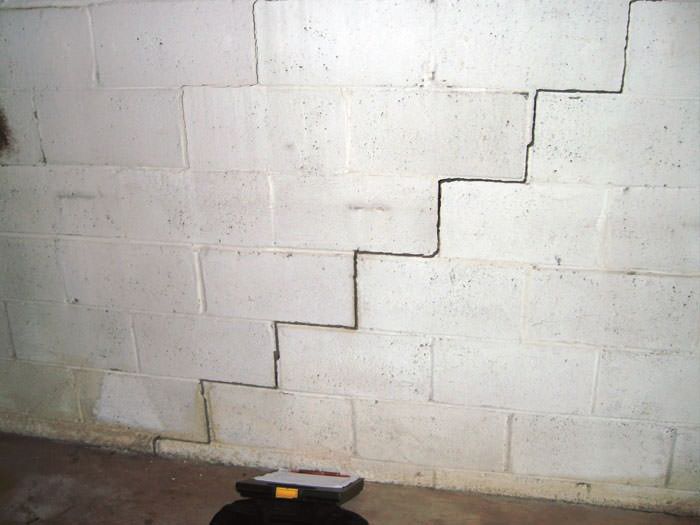

A diagonal stair-step crack found along a foundation wall A diagonal stair step crack along the foundation wall A foundation showing severe inward buckling along the windows Severe foundation damage from a long crack in a bucking wall

What Causes Cracked & Bowed Foundation Walls?

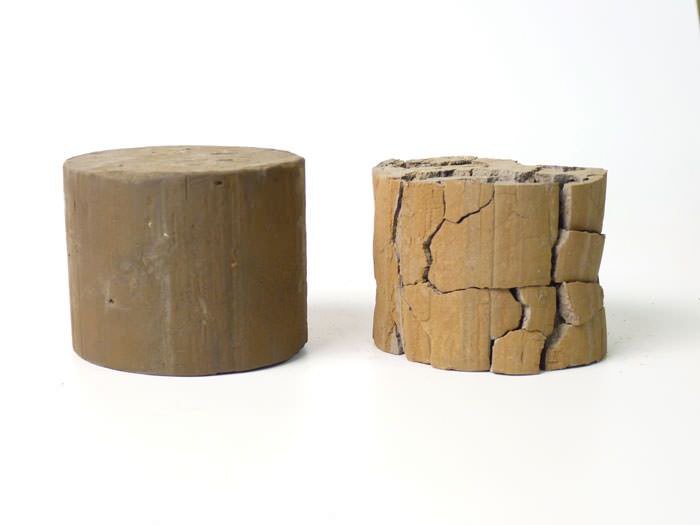

wet and dry clay soil samples, with the dry one shrunken and cracked

How Much Does Moisture Affect Clay Soils?

These two clay samples started out exactly the same in size, weight, and composition. The sample on the right was allowed to dry out, while the one on the left was kept moist.

If a small sample of clay can gain this much volume when it gets wet, just imagine how dramatic the changes are in the soil around your home!

The soils around your home can put enormous pressure on foundation walls. The amount of pressure they exert depends on four factors:

  1. The type of soil around the foundation
  2. The amount of moisture in the soil
  3. How far underground the foundation is
  4. The temperature conditions

While there's constant pressure on your foundation walls from the outside, there's nothing on the inside pushing back!

When the pressure from outside is more than the foundation walls can handle, the walls will begin to fail.

Hydrostatic pressure, expansive clay soil and frost can create sufficient stress on walls to push them inward -- and even collapse.

Gutters and downspouts can also contribute significantly to foundation problems.

If roof runoff is not directed away from your foundation, the soil around the foundation will become heavier and more expansive as it's saturated with water.

If you would like a free foundation wall repair quote for your home, call or e-mail us today!

Installing Foundation Wall Anchors

At Basement Systems USA, we recommend the Geo-Lock™ Wall Anchor System, to stabilize failing foundation walls. Our contractors follow these six steps when installing our warrantied wall anchor system:

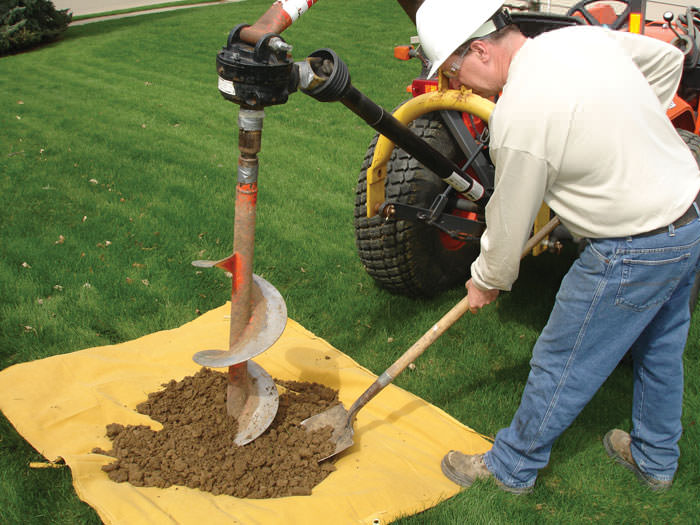

Auguring a hole in the earth for a foundation repair

Digging Holes For the Earth Anchors

Before the installation, earth anchor locations will be determined to maximize system effectiveness. When our in-house foundation contractors arrive, the contract will show the exact location of each earth anchor in the yard outside of your house.

At the beginning of each earth anchor installation, sod is carefully removed from your lawn and placed aside for later. A plastic sheet is laid down to help protect your lawn and landscaping, and an earth anchor hole is made using a power auger.

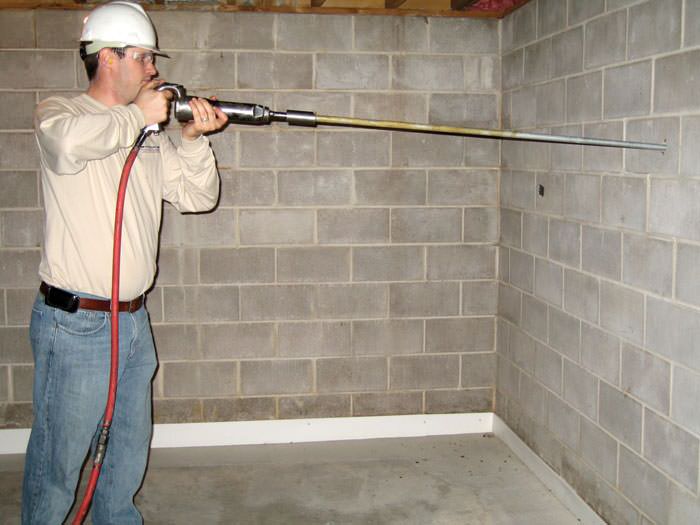

Coring a hole in a foundation wall for the earth anchor rod

Preparing The Foundation Wall

Once the hole has been excavated, we will core a small hole through your basement wall. Then, a steel anchor rod will be driven through the wall and soil, extending through a hole in the center of the earth anchor.

One way our wall anchor system is superior to other methods is that the hole created in the foundation wall is very small - 1" in diameter. Other methods may require a large hole or section of concrete block to be removed during installation.

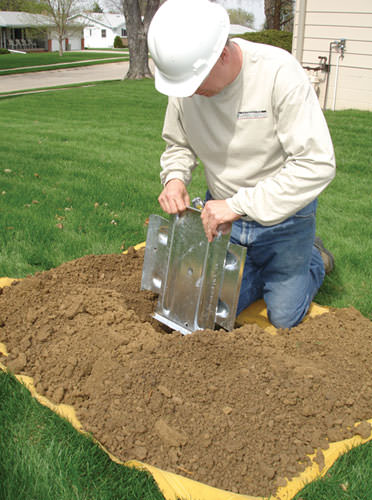

Steel earth anchor assembly installation

Attaching The Earth Anchor

After securing the end of each anchor rod to its earth anchor, these assemblies are buried in the ground, using soil removed earlier. To resist corrosion damage, each of our earth anchor systems is designed with galvanized steel.

Each of the Geo-Lock™ Earth Anchors we install includes a 25-year warranty against manufacturing defects, as well as our own in-house quality and performance warranty.

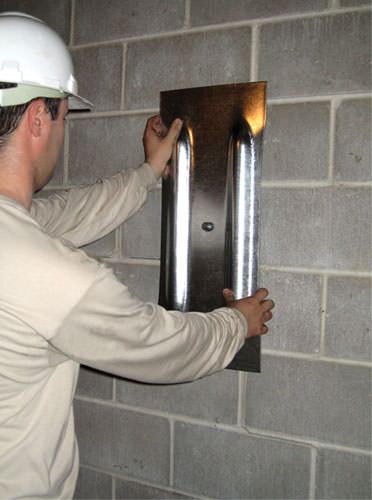

Mounting a foundation wall plate for an earth anchor installation

Mounting The Wall Plate

Once the earth anchors have been installed, our foundation repair experts will mount a wall plate over each anchor rod end that protrudes from the basement wall. Screwing a large nut to the threaded end of the anchor rod secures each wall plate and stabilizes the wall as the nut is tightened.

If your wall anchors are being installed in a finished basement, be sure to ask us about our Hide-A-Way® Wall Anchor Covers, which will help you conveniently conceal your wall anchor access points.

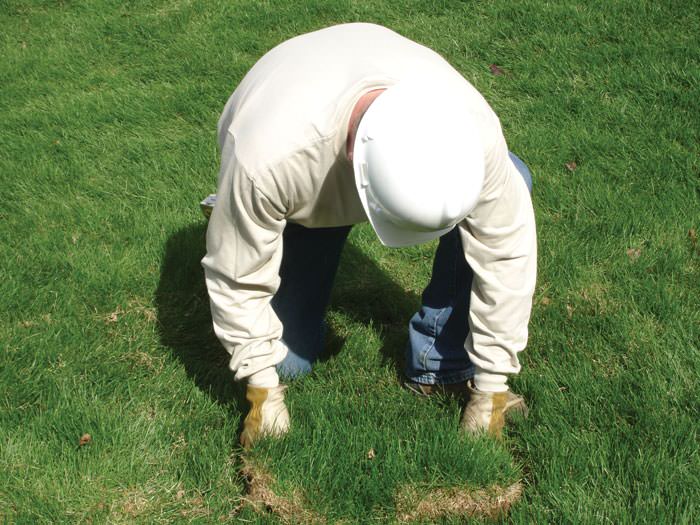

Restoring the landscaping by replacing removed sod

Restoring The Landscaping

At Basement Systems USA, we take pride in leaving each job clean, neat, and free of damage to existing landscaping. During our cleanup process, all dirt excavated during Step 1 will be returned to the hole. Workers will thoroughly tamp down the fill in each hole to avoid future soil settlement issues.

We will also replace all sod, carefully grooming it with a rake to help it to blend in with surrounding grass for a seamless landscaping restoration.

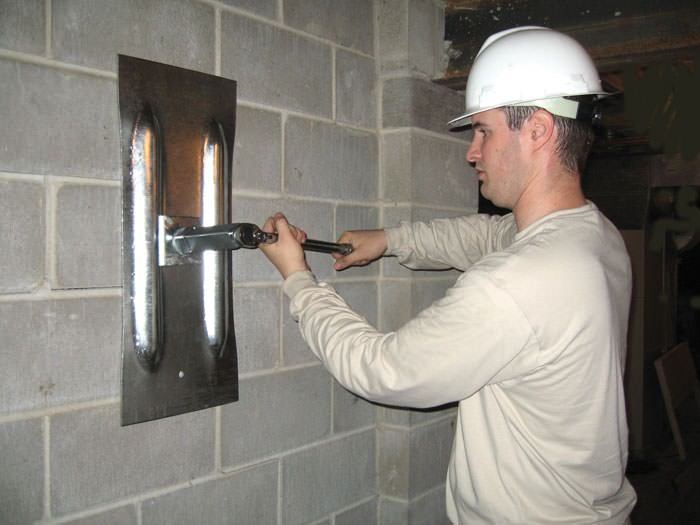

Straighten a bowed foundation wall by wall anchor system

Tightening Wall Anchors

Geo-Lock™ Wall Anchors do more than just stop the inward movement of your foundation walls -- they also provide the opportunity to straighten your walls over time.

Eventually, your walls can be significantly repaired, or even returned completely to their original position. This is a powerful way to restore value to your home and return your home to being solid, stable, and attractive -- both for you and for prospective home buyers.

When Foundation Wall Anchors Won't Work

In some cases, a wall anchor system can't be used to repair a bowing wall because the yard outside the house isn't accessible.

When we at Basement Systems USA encounter this kind of problem, we suggest that you installing our PowerBrace™ Foundation Wall System.

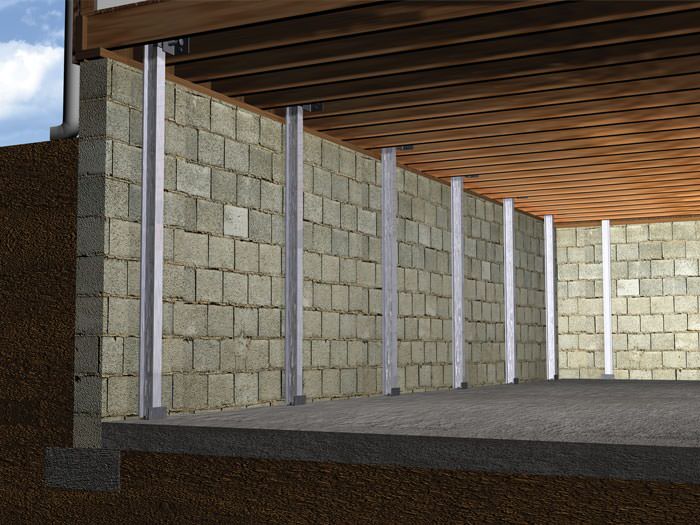

Graphic render of an installed i-beam system home.

Saving a wall with the PowerBrace™ system. This innovative system stabilizes bowing walls and can even straighten walls over time.

The PowerBrace™ System

The PowerBrace™ is a patented foundation wall repair system designed to stabilize failing basement walls and also allow for potential straightening over time.

This product is a great option when access to the yard outside of the home is not possible and bowing, buckling wall problems need to be solved.

The PowerBrace™ is an I-beam system that has several advantages over traditional "old school" systems.

This includes its rust-resistant zinc coating and a design that makes it possible not only to stabilize bowing walls, but also to straighten these walls over a period of time.

What NOT To Do

A foundation repair is a big job -- something you definitely only want to do once! When you're repairing your foundation, beware of expensive options that will not actually fix your problem -- and watch out for quick solutions that just don't work. Here are "fixes" that we at Basement Systems USA will NOT recommend:

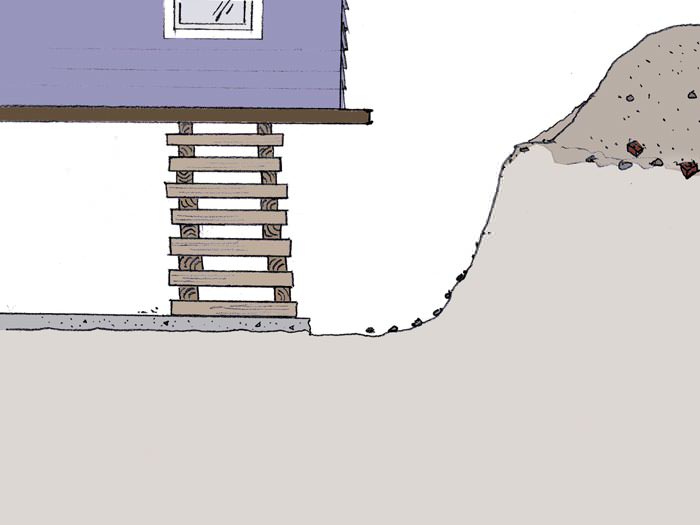

illustration of a total foundation replacement, showing the jacked up home

Wasting time and money with total foundation replacement.

This extreme repair option damages the yard and requires the house to be placed on temporary supports. It's also expensive and time-consuming.

Total Foundation Replacement:

To undertake a job like this, you have to excavate the entire perimeter of your foundation -- including gardens, shrubbery, sidewalks, and other landscaping.

Next, the house is jacked up, and the floor slab and foundation walls are removed. Finally, the foundation is rebuilt, the house is re-positioned and the soil is replaced.

This solution is extremely disruptive, expensive, and time consuming. What's worse, it's not really addressing the issue.

Your foundation isn't the problem -- the soil is! When you're done building that brand new foundation, you can count on the soil to cause damage just like it did before.

If you're going to invest money in repairing your foundation, choose the solution that is not disruptive and will be warrantied for 25 years.

Looking For Foundation Wall Repair Experts In Maryland, Delaware, or Pennsylvania?

At Basement Systems USA, we're proud to provide warrantied solutions that will permanently solve issues with bowing, buckling foundation walls.

We provide free, no-obligation foundation wall repair estimates to homeowners throughout our Maryland, Delaware, and Pennsylvania service area. Each estimate is made in person, on site, and is presented in writing.

Our service area includes Gloucester, Springfield, Chester, Edgewood, and nearby areas such as Philadelphia, Baltimore, Ellicott City, Wilmington, Upper Darby, Parkville, Lancaster, Dundalk, Owings Mills, Haverford, Gwynn Oak, Catonsville, Essex, Towson, Elkton, Bear, Middle River and the surrounding areas. Call or e-mail us today!
